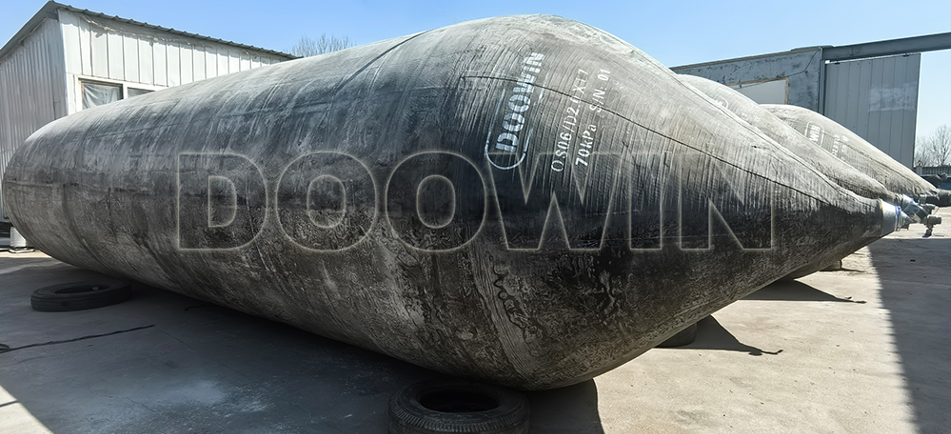

Diameter 0.8m-3m Ship Launching Airbags For Shipping Containers

Name: Diameter 08m3m Ship Launching Airbags For Shipping Containers
Brand: DOOWIN MARINE
Price: 1000 USD

Quality Diameter 0.8m-3m Ship Launching Airbags For Shipping Containers wholesale

Brand Name : DOOWIN MARINE

Model Number : QP5,QG6,QG8,QG10.

Certification : CCS,ABS,LR,BV

Place of Origin : China

MOQ : 1pc

Price : USD$1000 - $ 13800

Payment Terms : T/T

Supply Ability : 10pcs/per week

Delivery Time : 2~3 weeks

Packaging Details : Pallet or Plywooden Box

Product name : Ship Launching Using Airbags

Material : Synthetic tire cords

Part : Ship Launch Rollers

Color : Black

Diameter : 0.8 ~ 3m

Length : 5 ~ 30m

Usage : Ship launching,landing and slvage,Protect Boat.

Standard : ISO14409

Packing : Pallet or as per customer's requirements

Warranty period : 2 Years

Technology : High Pressure,Whole Wrapping,anti-explosion type.

Life : 6-10 years

Contact Now

DOOWIN Ship Launching Using Airbags Heavy Duty Lifting Marine Rubber Airbag

Heavy lifting air bags, known as marine rubber airbags or ship launching balloons, are made of heavy-duty synthetic-tire-cord layers with inner and outer rubber layers in a long cylindrical balloon shape.

The heavy lifting airbag is updated based on the ship launching airbags, making them more suitable for heavy lifting and moving work. These airbags have a different structure from ship launching airbags and can roll steadily when taking the load, unlike inferior products which are prone to twisting.

As one of the toughest pneumatic lifting airbags available, they can be used for heavy lifting and moving of huge structures, caissons, buildings, and more. Each heavy lifting airbag can reach a lifting capacity of over 1,000 tons.

Diameter 0.8m-3m Ship Launching Airbags For Shipping Containers

Why Choose Marine Heavy Lifting Air Bags

Superior manufacturing and quality control processes from raw material selection through the highly skilled production process ensure reliable performance.

Classification of Heavy Lifting Airbags

Heavy lifting airbags are categorized by bearing capacity per meter in length, with layer count determining Safety Working Pressure. Custom types are available upon request.
QP - Ordinary airbag with 3, 4 or 5 layers of cord fabric
QG - High-bearing capacity with 6, 7, or 8 layers of cord fabric
QS - Superhigh-bearing capacity with 9, 10, or more layers of cord fabrics

Example: QG6/1.5*15
QG6: 6 layers cord fabric
1.5: diameter is 1.5m
15: length is 15m

Performance Parameters of Heavy Lifting Airbags

Type No.	Diameter (m)	Initial Internal Pressure for Test (kPa)	Rated Working Pressure (kPa)	Bearing Capacity at 70% compress deformation (KN/m)	Minimum Burst Pressure (kPa)
QP5	0.8	48	210	184	630
	1.0	35	170	186	510
	1.2	28	140	185	420
	1.5	20	110	181	330
	1.8	16	90	178	270
	2.0	14	80	176	240
QG6	0.8	56	245	215	740
	1.0	45	200	219	600
	1.2	32	165	217	490
	1.5	25	130	218	390
	1.8	20	110	220	330
	2.0	18	100	220	300
QG7	0.8	64	270	237	810
	1.0	50	220	242	660
	1.2	38	190	251	570
	1.5	29	150	247	450
	1.8	25	130	257	390
	2.0	23	120	264	360
QG8	0.8	70	300	264	900
	1.0	54	240	264	720
	1.2	45	210	277	630
	1.5	32	170	280	510
	1.8	29	150	297	450
	2.0	26	140	308	420

Structure of Ship Launching Airbags

Our engineering team constantly improves the Structure of Typical Air Bags

The standard ship launching airbags include the below spares. Ready for use

- The end of the airbag body
- End flange (Q235 H.D.G)
- Sealing Washer
- Three-direction connector at the inflate end (Q235 H.D.G)
- 3/4′ Ball Valves at the inflate end (Brass)
- Hose connection at the inflate end (Q235)
- High-quality Pressure Gauge
- End plug at the tightness end (Q235 H.D.G)

Ship Launching Airbags Rubber Material Performance

No.	Test Item	Value	Standard
1	Tensile Strength, Mpa	≥18	ISO 37
2	Elongation at break, %	≥400	ISO 37
3	Hardness, ° (Shore A)	60±10	ISO 7619-1
4	Tear Strength, N/cm	≥400	ISO 34-1
5	Compression set, % (70℃±1℃,22h)	≤30	ISO 815-1
6*	Holding of pull lengthening, %	≥80	ISO 188
7*	Holding of elongation at break, %	≥80	ISO 188
8*	Change of hardness, ° (Shore A)	≤8	ISO 7619-1
9	Static ozone aging at 40℃ x 96h, extension 20%	No crack	ISO 1431-1
